Nissan Titan XD

Titan XD Steering Kit

CJD-139

$330.00

Replaces the inner and outer tie rods. This kit comes with heims and both ends of the tie rods for a stronger and more firm feel. These are much stronger than the stock tie rods and also eliminate bump steer.
Specs:
Stock Replacement
Bolt-On

What's Included:

Sold in pairs
Billet Tie Rods
Grade 8 Hardware
Stainless Misalignments
All Needed Heims

Titan XD Stock Replacement UCA

CJD-140

$907.50

Fully boxed CAD design. Created to replace the stock arms. Theses arms allow for more coil bucket clearance when lifting your vehicle. These arms come with heim pivots at the frame which allow for more wheel adjustment when aligning your vehicle. Comes with uniballs at the spindle pivot for more articulation and strength. Optional Delta Joint available for inclement weather areas. Arms come fully assembled for easy install.
Specs:
Lift: 0-3”
Minimum Rim Size: 17”
Maximum Tire Size: 35”
Track Width: Stock

What's Included:
Boxed UCA
Stainless Misalignments
Grade 8 Bolts
All Needed Heims and Uniballs
Black Powder Coat

CJD Nissan Titan XD Stock Replacement Upper Control Arms

Sway bar end links

CJD-104

$99.00

Replaces the stock bushing style end link.

Allows for more movement.

Adjustable.

Stock length to custom sizes.

Stock length: 0-3" lift

Extended length: bracket lifts

Sold as a pair

Radflo C-Spanner Wrench

$18.75

Adjust your Radflo coil-overs with ease with the Radflo adjustable C-Spanner Wrench. This coilover adjustment tool allows for easy adjustment of ride height on your coil-over shocks and is built to withstand years of use. This Radflo spanner wrench will fit all Radflo Coil-Overs which makes it a must have for the tool box

*Please specify 2.0" or 2.5"

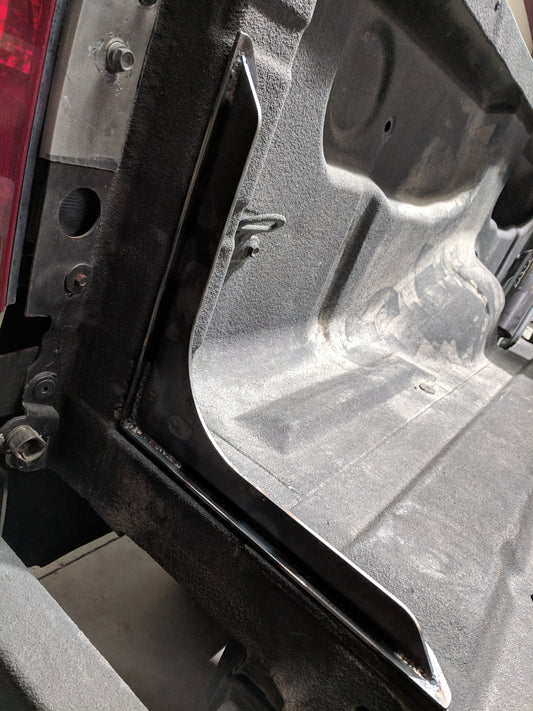

Low profile bed stiffeners

CJD-074

$137.50

These bed low profile bed stiffeners bolt right on (nuts and bolts provided) and will add strength to the well known flimsy beds. Come painted black. $25 extra for black powder coat. Simi universal

Spare Tire mount

CJD-096

$220.00

This spare tire mount is set up to mount to the utility tracks on the bed sides of the vehicle. This mount is adjustable for various tire sizes. Can be mounted anywhere on the railing. Welded mounts for cable lock to secure rim.

Whats included:

Mounting plate

Spanner wrench

Urethane mounting cone

Mounting bracket

Hardware

Comes painted black

Powder coat extra

Icon Suspension Delta Joint Retrofit Kit for 1" Upper Control Arms

$279.95

Retrofit kits include a pair of Delta Joints, retaining rings, and a supply of anti-seize

Patent pending Delta Joint combines the durability of a ball joint with the performance characteristics of a traditional uniball

Sealed design and zinc plated housing protects Delta Joint from the elements, road salts, and other debris

Metal on metal internals and a greasable design for maximum longevity and noise-free operation

California Residents: WARNING

Icon Suspension Delta Joint Retrofit Kit for 1" Upper Control Arms

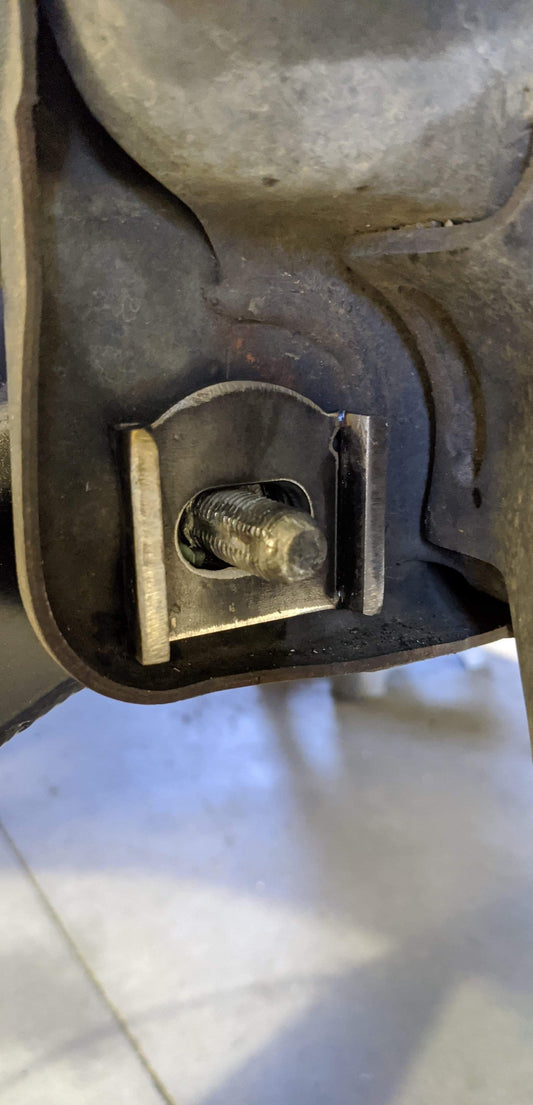

LCA bolt hole repair gussets

CJD-067

$159.50

CAD designed and made from 3/16" steel. These go right into place over the stock cam bolt holes. These are required to be welded on. They come in a full set of 8 mounts. So if you're looking to reinforce the stock holes, these will be your ticket.

What's included:

8- 3/16" steel plate gussets

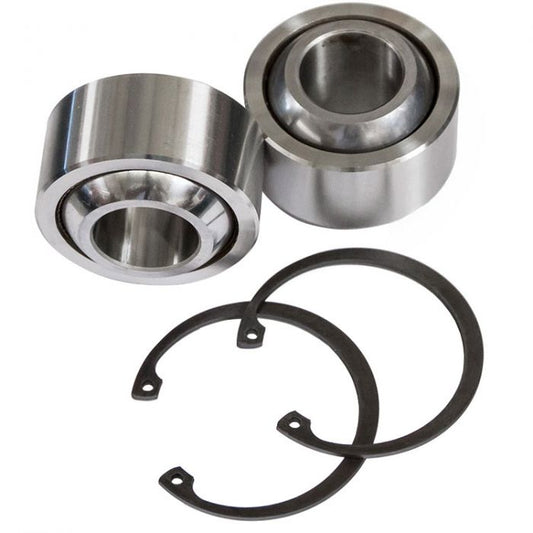

1" uniball

CJD-003

$26.95

Stainless Steel Series spherical bearings are a precision grade spherical bearing. Each bearing is made from Stainless Steel with a PTFE liner and has tighter tolerances than traditional spherical bearings.

Flag mount

CJD-033

$59.75

Flag mount for the bed of your truck. Can be used with or without utili-track system. Made to fit any 1" diameter flag poles.

What's included:

Flag pole mount

Mounting hardware

Come coated in Steel-It

UCA rebuild kit

CJD-174

$148.50

Wore out upper control arms? This kit is what you need to rebuild and refresh them

What's included:

2 - 1" uniballs

2 - 1" uniball snap rings

4 - 3/4" JMX right hand heims

4 - 3/4" jam nuts

Single speed compression adjuster

$175.00

The compression adjuster technology provides drivers the highest level of dampening customization and allows drivers to quickly fine-tune ride quality and performance for street or the most demanding off-road conditions, just with their fingertips.

Note: shock must have reservoir for compression adjuster to work.

Dual speed compression adjuster

$270.00

The compression adjuster technology provides drivers the highest level of dampening customization and allows drivers to quickly fine-tune ride quality and performance for street or the most demanding off-road conditions, just with their fingertips.

Note: shock must have 2.5" diameter reservoir for dual speed compression adjuster

Radflo Cerakote shock coating

$200.00

Cerakote is a ceramic based finish that can be applied to metals, plastics, polymers and wood. The unique formulation used for Cerakote ceramic coating enhances a number of physical performance properties including abrasion/wear resistance, corrosion resistance, chemical resistance, impact strength, and hardness. Each of these properties is rigorously tested to guarantee that Cerakote products remain at the forefront of the ceramic coatings market. Cerakote ceramic coatings utilize state-of-the-art technology to out-perform any competitive coating in both laboratory settings and real world applications.

Note: cost is per shock.

Titan XD Bilstein 5100 Ride Height Adjustable Shock Absorber

$146.94

Part Number: BIL24-266659

16 - Current TitanXDdiesel engine 4WD models
Front shock
Front lift height 0 - 2"
California Residents:WARNING

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

Titan XD Bilstein 5100 Ride Height Adjustable Shock Absorber

Titan XD rear Bilstein 5100 Series Shock Absorber

$102.12

Part Number: BIL33-268996

For vehicles with up to 1 inch rear lift
4WD Diesel models
Rear shock
Collapsed Length (IN): 16.20
Extended Length (IN): 25.81
Finish: Zinc plated
Reservoir: No
Body design: Smooth body (non-coilover)
California Residents:WARNING

Bilstein 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort

Titan XD rear Bilstein 5100 Series Shock Absorber

XD Radflo 2.0 rear shocks

$555.00

Radflo OE Replacement 2.0" Diameter, Rear Smooth Body Shocks, Emulsion, for the Nissan Titan XD | Sold in individually

Availability: All Radflo OE Replacement Shocks are custom built-to-order, and uniquely valved to meet you and your vehicle's unique needs and specifications. Average turnaround time 10 days. What we mean by "built-to-order".

XD Radflo 2.5 rear shock with reservoir

$525.00

Radflo takes great pride in manufacturing premier shock absorbers that are engineered to outlast and outperform the competition. Through refined craftsmanship Radflo's products are built to order and all component are manufactured from the highest quality materials and machined engineering. As a result our product line is not only efficient but dependable and provide high performance outcomes. Our commitment is to provide top tier client services to our loyal-passionate consumer base and enthusiasts without compromising quality and price. We thank you for selecting Radflo.

2016-2019 Titan Light Bar Grill

CJD-003

$577.50

Second generation Titan grill insert. CNC cut, steel grill. Grill is bolt on and uses existing bolts/ mounts. Comes powder coated black. 20" light bar comes installed in grill. Other colors available for added cost. Please email for pricing and colors.

Whats included:

Main grill

2 side grill inserts

20" light bar

All needed hardware

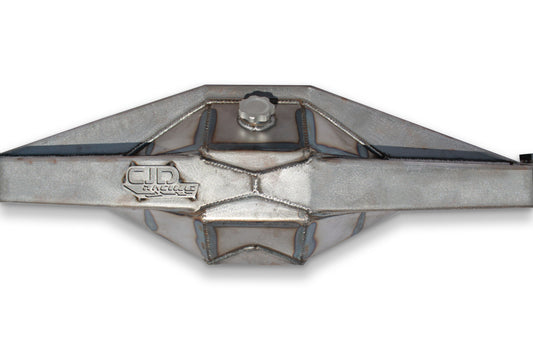

Fabricated Ford 9" Axle

CJD-187

$2,300.00

Secifications:

35 spline axles
3.5" 3/8" tubing
Fabricated housing with 1/8"-3/8" plate
CNC machined tubing ends
Laser cut tone rings
Up to 3" wider than stock (per side)

Gearing Options:

3.00 3.25 3.40 3.50 3.70 3.75

3.89 4.11 4.29 4.30 4.57 4.71

4.86 5.14 5.29 5.43 6.00 6.20

6.50

Titan XD Stock Replacement LCA

CJD-203

$1,275.00

These arms are fully CAD designed and made with 3/16” and 1/8” boxed plate. We have redesigned these arms to eliminate axle rubbing on the shocks for 4wd owners. These arms run a 1” uniball vs a ball joint for increased articulation and strength. The arms are fully rebuildable. Comes with greasable bushings. Arms come fully assembled for easy install. Sway bar mount included.
Specs:
Lift: 0-3”
Minimum Rim Size: 17”
Maximum Tire Size: 35”
Track Width: Stock

What's Included:
Boxed LCA
Urethane Bushings
Zerk Fittings
Stainless Misalignments
Grade 8 Bolts
1” Uniballs
Black Powder Coat

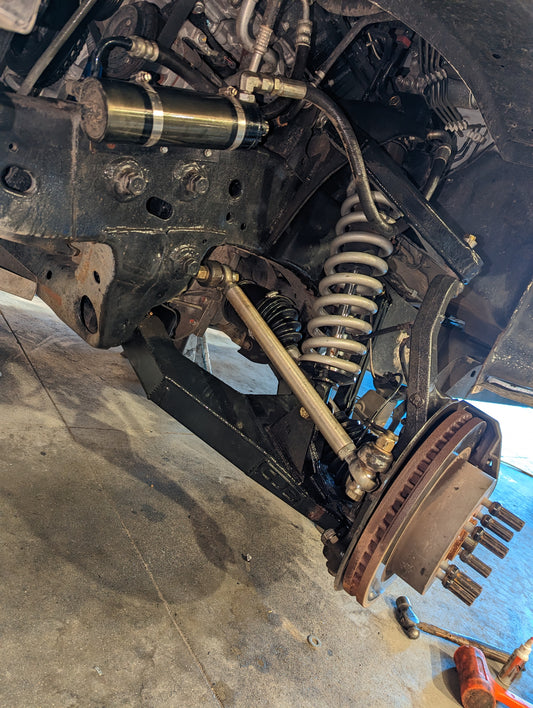

Titan XD Long Travel Kit

CJD-191

$5,845.00

This kit is a true bolt-on long travel kit. It’s fully CAD designed with 3/16” and 1/8” boxed plate. The kit is 3"" wider per side for a total of 6"" wider front track width. Compatible with both 2WD and 4WD. Bolts up to the stock spindle. Cycles 14"" wheel travel. This kit is meant to be paired with our custom made bolt-on 2.5"" Carbon Technologies coilover and custom top hat. Comes with limit straps. The top mount does need to be welded to the frame for the limit straps to work. 4WD comes with a pair of 300M axles to complete the kit. (Axles only work with OEM CV's)

Hydraulic bump stops compatible.

Specs:

Wheel Travel: 14”

Minimum Rim Size: 17”

Maximum Tire Size: 37”

Track Width: 3” Wider Per Side

Coilover: Custom Carbon Technologies 2.5” with Reservoirs and dual compression adjusters

What’s Included:

Boxed UCA

Boxed LCA

Billet Tie Rods

Grade 8 Hardware

Brake Line Relocation Mount

Black Powder Coat

Extended 300M Axles (4WD Kit Only) (Axles Only Work with OEM CV’s)

Stainless Misalignments

All Needed Heims and Uniballs

Titan XD Prerunner Bumper

CJD-199

$1,700.00

Bolt on Nissan Titan XD prerunner style front bumper. Bumper bolts to existing frame mounts. Optional "Bumper to frame" skid plate

Black powder coated.

Email for options such as abs valance, light, top hoop, etc.

Materials:

2" DOM Tubing

3/16" Steel Plate

3/16" and 1/8" Aluminum
