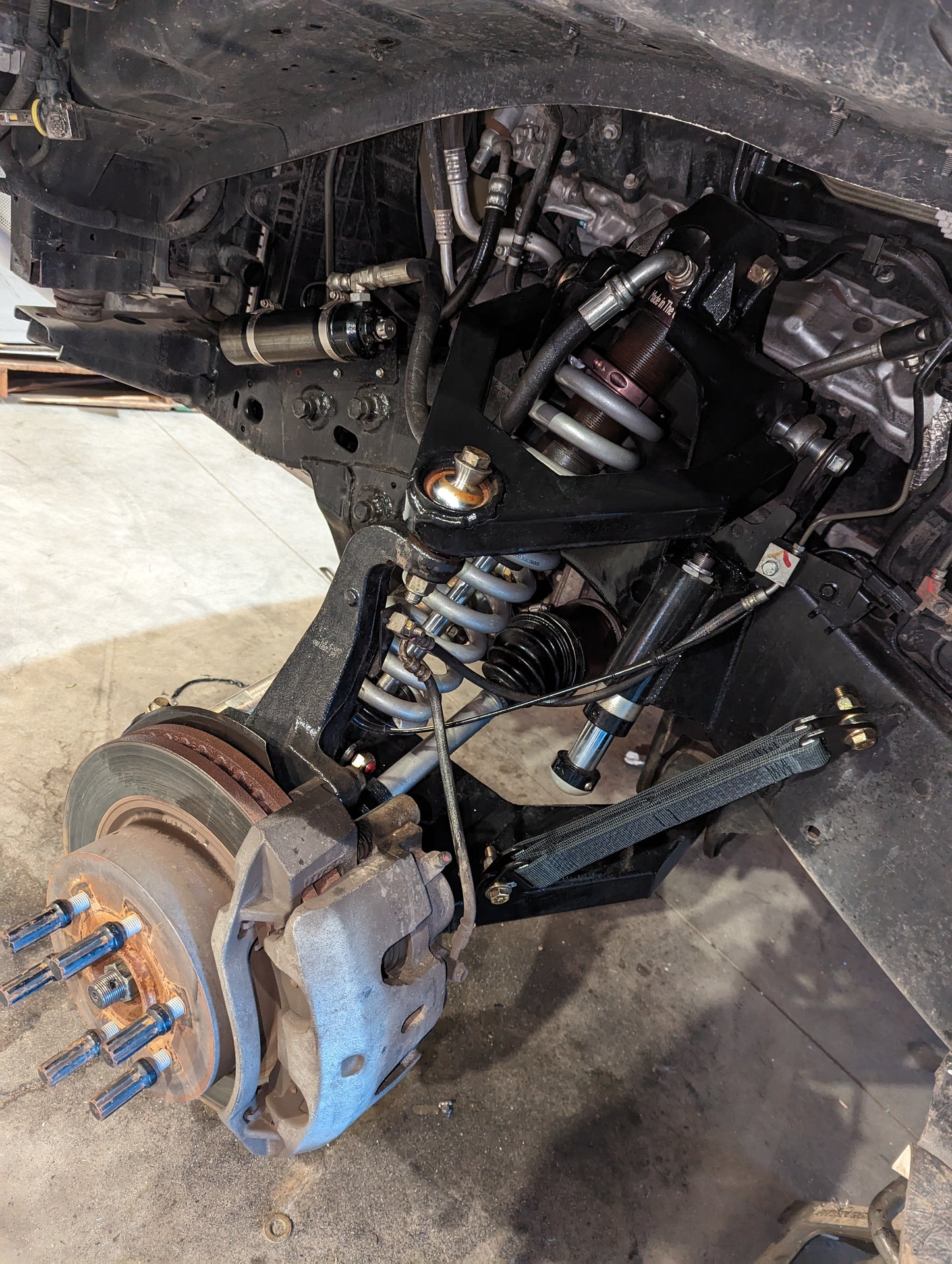

Titan XD Long Travel Kit

This kit is a true bolt-on long travel kit. It’s fully CAD designed with 3/16” and 1/8” boxed plate. The kit is 3"" wider per side for a total of 6"" wider front track width. Compatible with both 2WD and 4WD. Bolts up to the stock spindle. Cycles 14"" wheel travel. This kit is meant to be paired with our custom made bolt-on 2.5" coilover and custom top hat. Comes with limit straps. The top mount does need to be welded to the frame for the limit straps to work. 4WD comes with a pair of 300M axles to complete the kit. (Axles only work with OEM CV's)

Hydraulic bump stops compatible.

Specs:

Wheel Travel: 14”

Minimum Rim Size: 17”

Maximum Tire Size: 37”

Track Width: 3” Wider Per Side

Coilover: Custom Carbon Technologies 2.5” with Reservoirs and dual compression adjusters

What’s Included:

Boxed UCA

Boxed LCA

Billet Tie Rods

Grade 8 Hardware

Brake Line Relocation Mount

Black Powder Coat

Extended 300M Axles (4WD Kit Only) (Axles Only Work with OEM CV’s)

Stainless Misalignments

All Needed Heims and Uniballs
