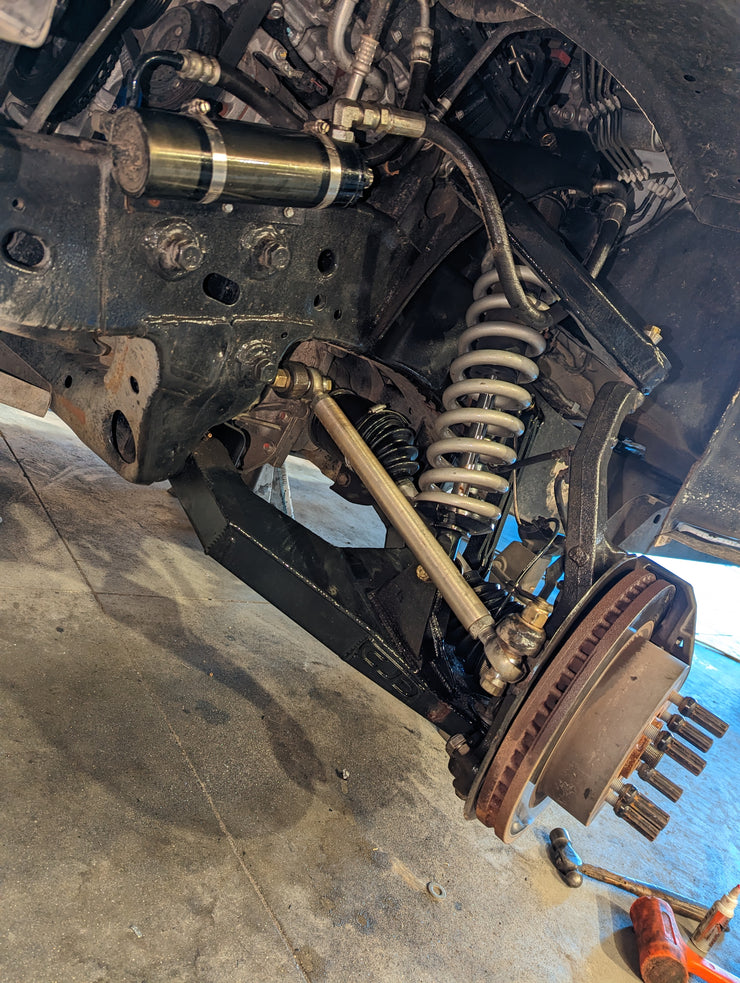

Titan XD Long Travel Kit
Titan XD Long Travel Kit
This kit is a true bolt-on long travel kit. It’s fully CAD designed with 3/16” and 1/8” boxed plate. The kit is 3"" wider per side for a total of 6"" wider front track width. Compatible with both 2WD and 4WD. Bolts up to the stock spindle. Cycles 14"" wheel travel. This kit is meant to be paired with our custom made bolt-on 2.5" coilover and custom top hat. Comes with limit straps. The top mount does need to be welded to the frame for the limit straps to work. 4WD comes with a pair of 300M axles to complete the kit. (Axles only work with OEM CV's)
Hydraulic bump stops compatible.
Specs:
Wheel Travel: 14”
Minimum Rim Size: 17”
Maximum Tire Size: 37”
Track Width: 3” Wider Per Side
Coilover: Custom Carbon Technologies 2.5” with Reservoirs and dual compression adjusters
What’s Included:
Boxed UCA
Boxed LCA
Billet Tie Rods
Grade 8 Hardware
Brake Line Relocation Mount
Black Powder Coat
Extended 300M Axles (4WD Kit Only) (Axles Only Work with OEM CV’s)
Stainless Misalignments
All Needed Heims and Uniballs
***MADE TO ORDER***
