Nissan Armada

This suspension kit was designed for the extreme off roader. This kit is fully CAD designed with 3/16” and 1/8” boxed plate. We changed the upper arm mounting location to improve the geometry of the full suspension cycle. This kit is capable of 19” of wheel travel with the 2WD system and 17” of wheel travel with the 4WD system. The 4WD kit comes with 300M race axles. It allows for the use of tires up to 37” in diameter and designed to run a 2.5 x 10” coilover and bypass shock with +1” rod ends. Engine crossover brace extra $250. **Note: This system does require fabrication work. We highly recommend to have the work done by a professional and qualified fabricator. **

Install instructions are sent via email

Specs:
Wheel Travel: 2WD 19”/ 4WD 17”
Minimum Rim Size: 17”
Maximum Tire Size: 37”
Track Width: 5” Wider Per Side
Coilover: 2.5 x 10” with +1” Rod Ends
Bypass: 2.5 x 10” with +1” Rod Ends

What’s Included:

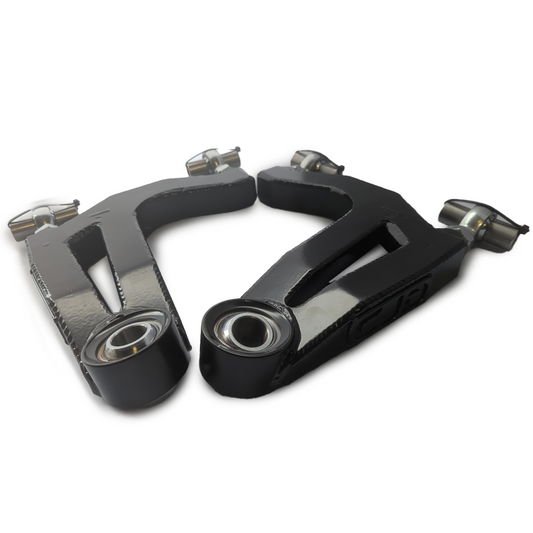

Boxed UCA
Boxed LCA
Spindles
Billet Tie Rods
UCA/ Shock Mounts
Grade 8 Hardware
DOT Stainless Braided Brake Lines
Black Powder Coat
Extended 300M Axles (4WD Kit Only) (Axles Only Work with OEM CV’s)
Stainless Misalignments
All Needed Heims and Uniballs

Shipped freight. Shipping cost will will be sent separately

This kit is a true bolt-on long travel kit. It’s fully CAD designed with 3/16” and 1/8” boxed plate. The kit is 3"" wider per side for a total of 6"" wider front track width. Compatible with both 2WD and 4WD. Bolts up to the stock spindle. Cycles 14"" wheel travel. This kit is meant to be paired with our custom made bolt-on 2.5"" Radflo coilover. Option to run with the 2WD 4"" lift spindle kit. Comes with limit straps. The top mount does need to be welded to the frame for the limit straps to work. 4WD comes with a pair of 300M axles to complete the kit. (Axles only work with OEM CV's) 2WD lift spindle option available.

Options: Boxed UCA that works with aftermarket shock hoops. Add this option to the notes at check out if this option is needed.

Specs:

Wheel Travel: 14” Minimum Rim Size: 17” Maximum Tire Size: 37”

Track Width: 3” Wider Per Side

Coilover: Custom Radflo 2.5” with Reservoirs

What’s Included:

Boxed UCA

Boxed LCA

Billet Tie Rods

Grade 8 Hardware

DOT Stainless Braided Brake Lines

Black Powder Coat

Extended 300M Axles (4WD Kit Only) (Axles Only Work with OEM CV’s)

Stainless Misalignments

All Needed Heims and Uniballs

Black Powder Coat
(Full Heim) Replaces the inner and outer tie rods. This kit comes with heims and both ends of the tie rods for a stronger and firmer feel. These are much stronger than stock tie rods and also eliminate bump steer.
(Outer Heim) Replaces the outer tie rod/ ball joint. This kit will tighten up the front end and steering. Connects to the stock inner tie rod. Runs a heim outer.
Specs:
Stock Replacement
Bolt-On

What's Included:
CNC Rack Bolt (Full Heim)
CNC Clevis (Full Heim)
Billet Tie Rods
Grade 8 Hardware
Stainless Misalignments
All Needed Heims

Fully CAD designed 4” lift spindles. Vertical 1” uniball in spindle for upper arm mount. Boxed UCA. This kit allows for increased wheel travel. Comes with heim outer steering. When paired with a lift coilover, this kit is capable of 6” of lift. This kit will increase the track width 1” per side due to hub placement. This kit is the best way to get lift yet retain the factory ride.
Specs:
Lift: 4”
Minimum Rim Size: 17”
Maximum Tire Size: 35”
Track Width: 1” Wider per Side

What's Included:
Lift Spindles
Boxed UCA
Billet Heim Steering
DOT Stainless Braided Brake Lines
Stainless Misalignments
Grade 8 Hardware
All Needed Heims and Uniballs

This kit will lift the rear of your Nissan Armada either 3.5" or 5.5" depending on the desired lift you choose. Bolt-on setup.  Does not include front bracket lift.

Install instructions are sent via email

Specs:

Lift: 3.5” or 5.5”

Minimum Rim Size: 17”

Maximum Tire Size: 37”

What's Included:

Steel Mounting Blocks

6061 Aluminum Spacers

DOT Stainless Brake Lines

Grade 8 Hardware

Your choice of the following shocks:

2- 2.5 diameter Radflo shocks with reservoirs

2- 2.0 diameter Radflo shocks with reservoirs

(shocks are made to order)

*** Lift kits typically 2-4 week build time.)

*** Shocks have a 14 + week build time)

CAD designed. Built with 3/16” and 1/8” plate for superior strength. These are a bolt-on spindle that will drop the front of your vehicle 2” lower. These are a great option to lower your vehicle yet retain the factory ride.
Specs:
Lift: -2”
Minimum Rim Size: 17”
Track Width: Stock

What's Included:
2” Drop Spindles
Black Powder Coat

Replaces the inner and outer tie rods. This kit comes with heims and both ends of the tie rods for a stronger and firmer feel. These are much stronger than stock tie rods and also eliminate bump steer.

Specs:

1st Gen (2004-2015)
Stock Replacement
Bolt-On

What's Included:

Sold in pairs
CNC Rack Bolt
CNC Clevis
Billet Tie Rods
Grade 8 Hardware
Stainless Misalignments
All Needed Heims

Bolt-on electric fan setup for the Nissan Titans, Armadas, Frontiers, Xterras and Pathfinders. Comes with dual 2100 CFM (each) fans and dual electronic fan controller. This setup will work with both stock and CSF radiators. Comes with everything needed. Just remove the stock fan clutch and fan shroud, slide this setup in and wire in power and ground.

Specs:

Stock Replacement Fan Shroud

Drop in Ready

What's Included: Aluminum Fan Shroud

Dual 2100 CFM Fans

Electronic Dual Fan Controller

Dual Breakers

Probe Hose Kit

CAD designed. Stock replacement. Made from 3/16” plate for increased strength over stock. Dual bushing design. Fully rebuildable. Built to last. 2WD version, 4WD also available.
Specs:
Stock Replacement
Rebuildable

What's Included:
Transmission Mount
Hardware Kit
Black Powder Coat

CAD designed. Stock replacement. Made from 3/16” plate for increased strength over stock. Dual bushing design. Fully rebuildable. Built to last. 4WD version, 2WD also available.
Specs:
Stock Replacement
Rebuildable

What's Included:
Transmission Mount
Hardware Kit
Black Powder Coat

CAD designed. Made from 3/16” plate. Dual bushing setup. Stock replacement. Sold in pairs.
Specs:
Stock Replacement
Rebuildable

What's Included:
Motor Mounts (Pair)
Black Powder Coat

Replaces the stock bushing style end link.

Allows for more movement.

Adjustable.

Stock length to custom sizes.

Stock length: 0-3" lift

Extended length: bracket lifts

Sold as a pair

Adjustable lower arm cam bolts. Comes in a set of 2. 2 sets are needed if replacing both lower arms.

Adjust your Radflo coil-overs with ease with the Radflo adjustable C-Spanner Wrench. This coilover adjustment tool allows for easy adjustment of ride height on your coil-over shocks and is built to withstand years of use. This Radflo spanner wrench will fit all Radflo Coil-Overs which makes it a must have for the tool box

*Please specify 2.0" or 2.5"

Designed to replace stock rubber brake hoses on vehicles with increased ride heights. Steel Braided lines will not swell under increased braking pressure demanded by larger tires thus delivering a quick and positive response. Hoses comply with D.O.T. specifications and are packaged as a complete kit.

2.5 coilover

2.5 coilover with remote reservoir

2.5 coilover with remote reservoir and compression adjusters

sold in pairs

Radflo takes great pride in manufacturing premier shock absorbers that are engineered to outlast and outperform the competition. Through refined craftsmanship Radflo's products are built to order and all component are manufactured from the highest quality materials and machined engineering. As a result our product line is not only efficient but dependable and provide high performance outcomes. Our commitment is to provide top tier client services to our loyal-passionate consumer base and enthusiasts without compromising quality and price. We thank you for selecting Radflo.

2.5 Rear Remote Reservoir

2.5 Rear Remote Reservoir Shocks w/ Adjusters

Radflo takes great pride in manufacturing premier shock absorbers that are engineered to outlast and outperform the competition. Through refined craftsmanship Radflo's products are built to order and all component are manufactured from the highest quality materials and machined engineering. As a result our product line is not only efficient but dependable and provide high performance outcomes. Our commitment is to provide top tier client services to our loyal-passionate consumer base and enthusiasts without compromising quality and price. We thank you for selecting Radflo.

Bolt on Nissan Titan prerunner style front bumper. 1.75" .120 DOM tubing. Bumper bolts to existing frame mounts. Black powder coated. Email for options such as abs valance, light, top hoop, etc.

Years - 2004-2015

**4-8week build time ETA**

This is a direct fit, steel battery box. This is designed to replace the plastic setup that comes stock. This box will bolt right in and will have a new steel mounting bracket for the fuse box as well.  It is designed to house a red, yellow or blue top Optima group 34/78 battery however, others may fit as well. Tig welded

Battery size spec: L 9.9"x W 6.8"x H 7.8"

CAD designed and made from 3/16" steel. These go right into place over the stock cam bolt holes. These are required to be welded on. They come in a full set of 8 mounts. So if you're looking to reinforce the stock holes, these will be your ticket.

What's included:

8- 3/16" steel plate gussets

This mount is designed to sit on top of the stock coil bucket and allow the use of a longer coilover shock. Bolts to existing holes. These mounts allow for a wide range of coilovers to be ran vs the stock replacement style. They allow the use of an external reservoir as well.

Whats included:

2- coilover top mount

2- under mount rings

Hardware

Note: Enlarging the existing coil bucket center hole is required to run this setup.

These axles are designed to be ran with out Race LT kit or our Bolt on LT kit. Made out of 300M material and CNC made and heat treated. These axles will only work with OEM CV joints

Wore out upper control arms? This kit is what you need to rebuild and refresh them

What's included:

2 - 1" uniballs or Delta Joints

2 - 1" uniball snap rings

4 - 3/4" JMX right hand heims

4 - 3/4" jam nuts

The compression adjuster technology provides drivers the highest level of dampening customization and allows drivers to quickly fine-tune ride quality and performance for street or the most demanding off-road conditions, just with their fingertips.

Note: shock must have reservoir for compression adjuster to work.

The compression adjuster technology provides drivers the highest level of dampening customization and allows drivers to quickly fine-tune ride quality and performance for street or the most demanding off-road conditions, just with their fingertips.

Note: shock must have 2.5" diameter reservoir for dual speed compression adjuster

Cerakote is a ceramic based finish that can be applied to metals, plastics, polymers and wood. The unique formulation used for Cerakote ceramic coating enhances a number of physical performance properties including abrasion/wear resistance, corrosion resistance, chemical resistance, impact strength, and hardness. Each of these properties is rigorously tested to guarantee that Cerakote products remain at the forefront of the ceramic coatings market. Cerakote ceramic coatings utilize state-of-the-art technology to out-perform any competitive coating in both laboratory settings and real world applications.

Note: cost is per shock.

Want to build your own front bumper but not sure where to start? These are the perfect starting point to go off of. These are a bolt on application. You will be able to build of them and design your bumper however you want.  Mounts come raw. Setup for 1.75" tubing but can work with 2" with a little modification.

Sold as a pair.

Front stock cross member must be cut off for install.

This kit comes with both innner and outer heims needed to rebuild your steering system

Whats included:

2- outer heims

2 - inner heims

4 - jam nuts

Carbon Shocks are manufactured in America using American made and sourced materials. Carbon Shocks are machined either in house or with a partner machine shop in Denver.

Shock material specs:

Shock body material - American DOM steel - Standard coating is Black zinc

Shock shaft material - Induction hardened chrome plated - 1050 steel HRc 60-72 (min yield 100k)

Aluminum parts are manufactured from Kieser 6061 or 7075 aluminum

Info:

Shocks are pressure tested to 300psi for 24 hours to ensure proper manufacturing QA

Shocks require a nitrogen charge of 150-200psi

Ideal charge for shocks is 175 psi nitrogen

Shock oil used us a locally sourced Titan 10w extreme temp Shock oil

All Carbon Shock Technology are backed by 1 year warranty against manufacture defects

The Radflo 2.5″ coil-over kit for the 2005+ Titan is the ultimate suspension upgrade.  The coil-overs are adjustable from 1″ – 2.5″ of lift height.  The 2.5″ diameter shocks are a huge improvement in both ride quality and performance.  The coil-overs are offered in standard length or extended for use with aftermarket upper control arms.  All Radflo coil-overs come with world renowned Eibach springs.  Kit contains two front coil-overs with mounting hardware.

B8 Control Arms are a direct fit upgrade for factory upper control arms on trucks and SUVs. The kit contains a pair of control arms which correct the caster alignment for better straight line stability with lifted suspensions, and the improved pivot angles increase wheel travel and reduce stress on the joints. These strong black powder-coated 4130 chromoly steel arms are a tubular design which allows for more spring and shock clearance and feature greasable polyurethane bushings and heavy duty ball joints for the ideal combination of ride quality and durability with minimal maintenance needed. They come with detailed instructions and all necessary hardware for easy installation and are compatible with all Bilstein shocks and coilover kits. All components are replaceable.

These shocks are lift size specific. Please make sure you order the correct lift.

Comes in 2.0 or 2.5 diameter

Radflo takes great pride in manufacturing premier shock absorbers that are engineered to outlast and outperform the competition. Through refined craftsmanship Radflo's products are built to order and all component are manufactured from the highest quality materials and machined engineering. As a result our product line is not only efficient but dependable and provide high performance outcomes. Our commitment is to provide top tier client services to our loyal-passionate consumer base and enthusiasts without compromising quality and price. We thank you for selecting Radflo.

Replaces the outer tie rod/ ball joint. This kit will tighten up the front end and steering. Connects to the stock inner tie rod. Runs a heim outer.
Specs:
Stock Replacement
Bolt-On

What's Included:

Sold in pairs
Billet Tie Rods
Stainless Misalignments
Grade 8 Bolts
All Needed Heims
