Frontier long travel race kit

This suspension kit was designed for the extreme off roader. This kit is fully CAD designed with 3/16” and 1/8” boxed plate. We changed the upper arm mounting location to improve the geometry of the full suspension cycle. This kit is capable of 19” of wheel travel with the 2WD system and 17” of wheel travel with the 4WD system. The 4WD kit comes with 300M race axles. It allows for the use of tires up to 37” in diameter and designed to run a 2.5 x 10” coilover and bypass shock with +1” rod ends.  **Note: This system does require fabrication work. We highly recommend to have the work done by a professional and qualified fabricator. This kit requires Titan hubs and brakes. We recommend 04-06 brakes for the Frontier to avoid rim spacing issues. 4wd requires the use of a Titan front differential and Titan CV's **

Specs:
Wheel Travel: 2WD 19”/ 4WD 17”
Minimum Rim Size: 17”
Maximum Tire Size: 37”
Track Width: 8” Wider Per Side
Coilover: 2.5 x 10” with +1” Rod Ends
Bypass: 2.5 x 10” with +1” Rod Ends

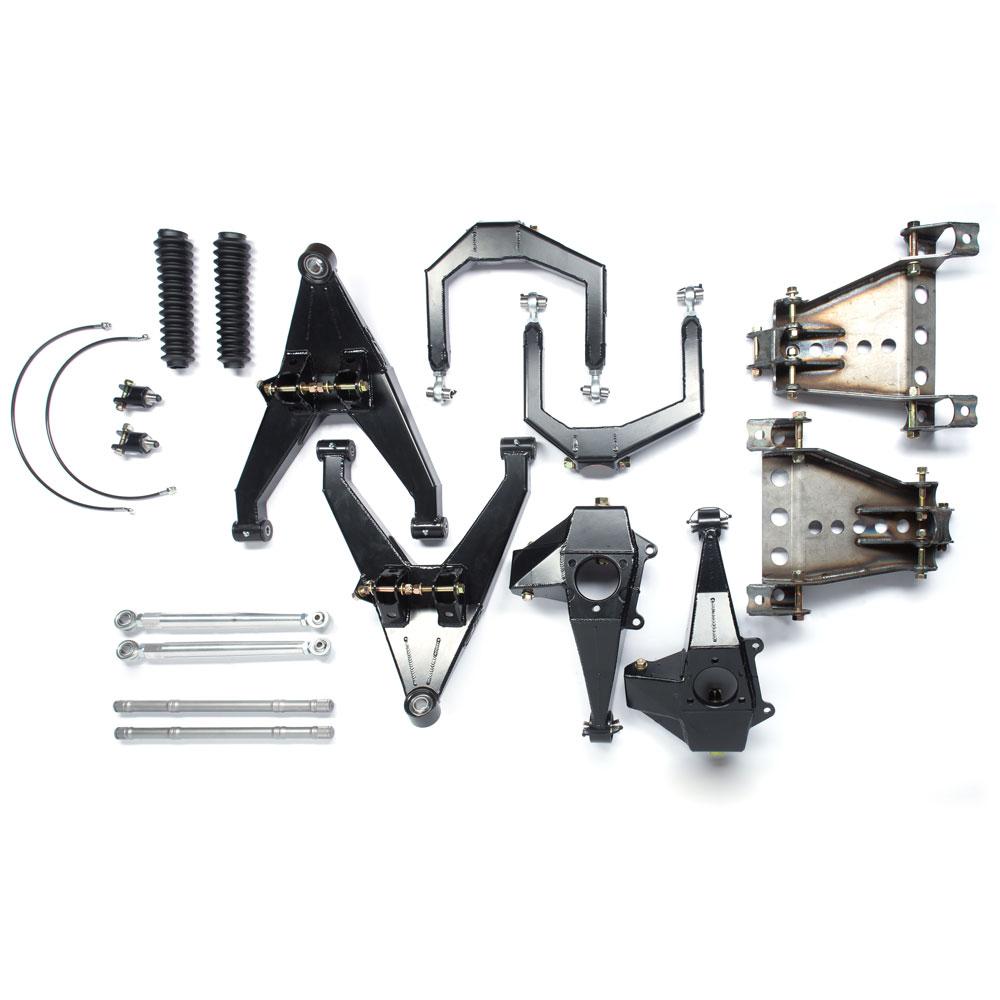

What’s Included:
Boxed UCA
Boxed LCA
Spindles
Billet Tie Rods
UCA/ Shock Mounts
Grade 8 Hardware
DOT Stainless Braided Brake Lines
Black Powder Coat
Extended 300M Axles (4WD Kit Only) (Axles Only Work with OEM CV’s)
Stainless Misalignments
All Needed Heims and Uniballs

Shipping cost will be sent separately due to weight
